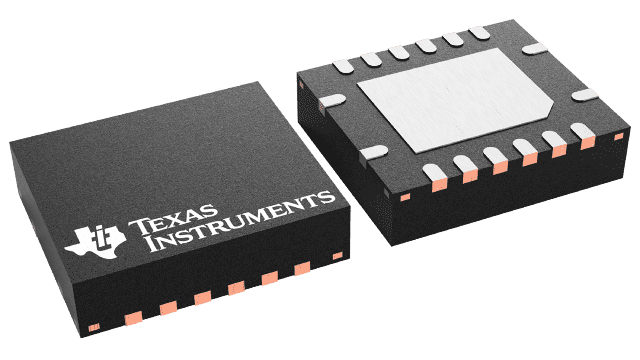

SN74AVCH4T245RGYR Texas Instruments - Yeehing Electronics
4-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation and 3-State Outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.368 |
| 100 — 249 | 1.053 |
| 250 — 999 | 0.775 |
| 1,000 + | 0.39 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Translation - Voltage Levels |
| RoHS | Y |
| Propagation Delay Time | 2.9 ns |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 1.2 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-16 |
| Packaging | Reel |
| Data Rate | 380 Mb/s |
| Features | Partial power down (Ioff), Over-voltage tolerant inputs, Bus-Hold |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Type | 3-State |
| Series | SN74AVCH4T245 |
| Brand | Texas Instruments |
| Logic Family | 74AVC |
| Logic Type | CMOS |
| High Level Output Current | 12 mA |
| Low Level Output Current | 12 mA |
| Moisture Sensitive | Yes |
| Product Type | Translation - Voltage Levels |
| Factory Pack Quantity | 3000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.001312 oz |
For more information, please refer to datasheet
Documents
| SN74AVCH4T245RGYR Datasheet |
More Information
This 4-bit noninverting bus transceiver uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.2 V to 3.6 V. The SN74AVCH4T245 is optimized to operate with VCCA/VCCB set at 1.4 V to 3.6 V. It is operational with VCCA/VCCB as low as 1.2 V. This allows for universal low voltage bidirectional translation between any of the 1.2V, 1.5V, 1.8V, 2.5V, and 3.3V voltage nodes.
