Texas Instruments

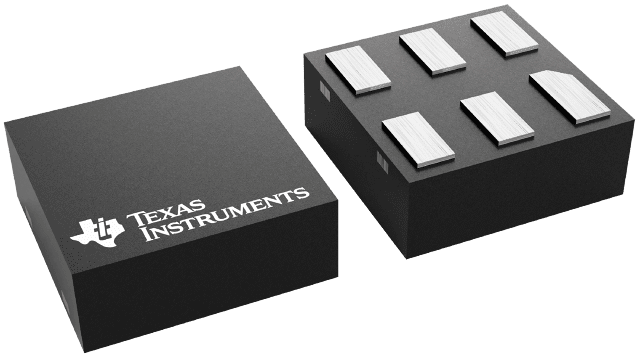

SN74AXC1T45DEAR
SN74AXC1T45DEAR
Regular price
$0.07 USD
Regular price
Sale price
$0.07 USD
Unit price
per
Couldn't load pickup availability
SN74AXC1T45DEAR Texas Instruments - Yeehing Electronics
Single-bit dual-supply bus transceiver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.284 |
| 100 — 249 | 0.193 |
| 250 — 999 | 0.149 |
| 1,000 + | 0.07 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Bus Transceivers |
| RoHS | Y |
| Logic Family | AXC |
| Output Type | 3-State |
| High Level Output Current | - 12 mA |
| Low Level Output Current | 12 mA |
| Propagation Delay Time | 173 ns |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 0.65 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Package / Case | X2SON-6 |
| Packaging | Reel |
| Number of Circuits | 1 Circuit |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | Bus Transceivers |
| Series | SN74AXC1T45 |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Number of Channels | 1 Channel |
| Number of Input Lines | 1 Input |
| Supply Current - Max | 8.5 uA |
| Development Kit | AVCLVCDIRCNTRL-EVM |
| Operating Supply Current | 8.5 uA |
| Polarity | Noninverting |
| Product Type | Bus Transceivers |
| Factory Pack Quantity | 5000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.000042 oz |
For more information, please refer to datasheet
Documents
| SN74AXC1T45DEAR Datasheet |
More Information
The SN74AXC1T45 is a single-bit noninverting bus transceiver that uses two separate configurable power-supply rails. The device is operational with both VCCA and VCCB supplies as low as 0.65 V. The A port is designed to track VCCA, which accepts any supply voltage from 0.65 V to 3.6 V. The B port is designed to track VCCB, which also accepts any supply voltage from 0.65 V to 3.6 V.
