SN74AXC1T45DTQR Texas Instruments - Yeehing Electronics

Single-bit dual-supply bus transceiver

Pricing (USD)

Quantity	Unit Price
1 — 99	0.364
100 — 249	0.248
250 — 999	0.191
1,000 +	0.09

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Bus Transceivers
RoHS	Y
High Level Output Current	- 12 mA
Low Level Output Current	12 mA
Propagation Delay Time	173 ns
Supply Voltage - Max	3.6 V
Supply Voltage - Min	0.65 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C

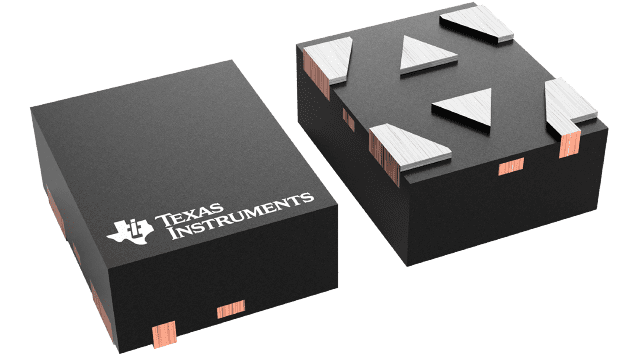

Package / Case	X2SON-6
Packaging	Reel
Number of Circuits	1 Circuit
Operating Temperature Range	- 40 C to + 125 C
Product	Bus Transceivers
Series	SN74AXC1T45
Brand	Texas Instruments
Mounting Style	SMD/SMT
Number of Channels	1 Channel
Number of Input Lines	1 Input
Supply Current - Max	8.5 uA
Operating Supply Current	8.5 uA
Polarity	Noninverting
Product Type	Bus Transceivers
Factory Pack Quantity	3000
Subcategory	Logic ICs
Part # Aliases	REEL
Unit Weight	0.000032 oz

For more information, please refer to datasheet

Documents

SN74AXC1T45DTQR Datasheet

More Information

The SN74AXC1T45 is a single-bit noninverting bus transceiver that uses two separate configurable power-supply rails. The device is operational with both VCCA and VCCB supplies as low as 0.65 V. The A port is designed to track VCCA, which accepts any supply voltage from 0.65 V to 3.6 V. The B port is designed to track VCCB, which also accepts any supply voltage from 0.65 V to 3.6 V.
