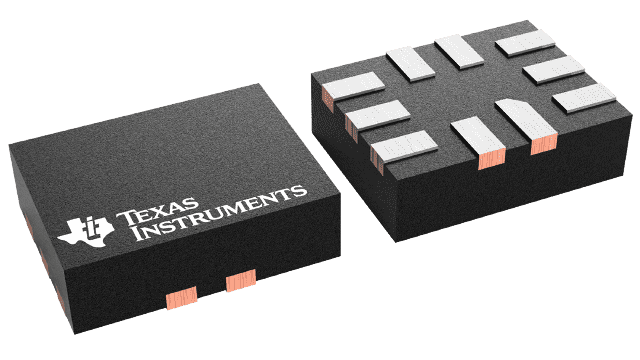

SN74AXC2T245RSWR Texas Instruments - Yeehing Electronics

Dual-bit, 2-DIR pin dual-supply bus transceiver w/ configurable voltage translation, 3-state output

Pricing (USD)

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

More Information

The SN74AXC2T245 is a two-bit noninverting bus transceiver that uses two individually configurable power-supply rails. The device is operational with both VCCA and VCCB supplies as low as 0.65 V. The A port is designed to track VCCA, which accepts any supply voltage from 0.65 V to 3.6 V. The B port is designed to track VCCB, which also accepts any supply voltage from 0.65 V to 3.6 V. Additionally the SN74AXC2T245 is compatible with a single-supply system.
