Texas Instruments

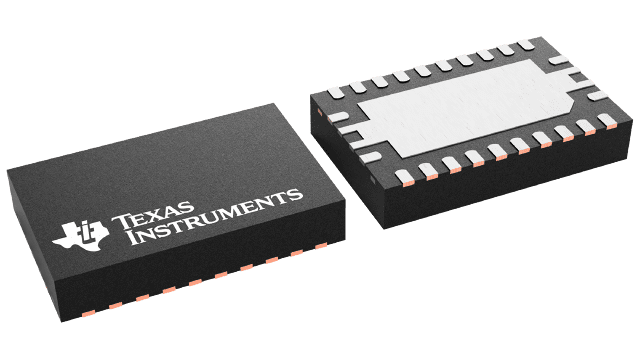

SN74AXC8T245RHLR
SN74AXC8T245RHLR
Regular price
$0.35 USD
Regular price
Sale price
$0.35 USD
Unit price
per
Couldn't load pickup availability
SN74AXC8T245RHLR Texas Instruments - Yeehing Electronics
8-bit dual-supply bus transceiver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.225 |
| 100 — 249 | 0.942 |
| 250 — 999 | 0.694 |
| 1,000 + | 0.35 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Translation - Voltage Levels |
| RoHS | Y |
| Type | Non-Inverting Bus Transceiver |
| Propagation Delay Time | 13 ns |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 0.65 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-24 |
| Packaging | Reel |
| Data Rate | 380 Mb/s |
| Features | Partial power down (Ioff), Over-voltage tolerant inputs, Output enable, Vcc isolation |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Type | 3-State |
| Series | SN74AXC8T245 |
| Brand | Texas Instruments |
| Logic Family | AXC |
| Number of Channels | 8 Channel |
| Development Kit | SN74AXC8T245EVM |
| Operating Supply Current | 38 uA |
| Product Type | Translation - Voltage Levels |
| Factory Pack Quantity | 3000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.002226 oz |
For more information, please refer to datasheet
Documents
| SN74AXC8T245RHLR Datasheet |
More Information
The SN74AXC8T245 device is an 8-bit non-inverting bus transceiver that resolves voltage level mismatch between devices operating at the latest voltage nodes (0.7 V, 0.8 V, and 0.9 V) and devices operating at industry standard voltage nodes (1.8 V, 2.5 V, 3.3 V) and vice versa.
