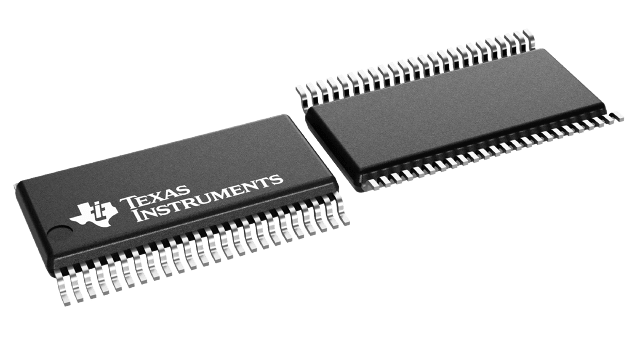

SN74CB3Q16210DGVR Texas Instruments - Yeehing Electronics

3.3-V, 1:1 (SPST), 20-channel FET bus switch with 2 control inputs

Pricing (USD)

Quantity	Unit Price
1 — 99	1.98
100 — 249	1.635
250 — 999	1.175
1,000 +	0.62

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Bus Switch ICs
RoHS	Y
Number of Bits	10 bit
On Resistance - Max	9 Ohms
Propagation Delay - Max	250 ps
Operating Supply Voltage	2.3 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	TVSOP-48
Qualification	AEC-Q100
Packaging	Reel
Height	1.05 mm
Length	9.7 mm
Organization	10 x 1
Series	SN74CB3Q16210
Width	4.4 mm
Brand	Texas Instruments
Logic Type	CMOS
Off Time - Max	7 ns
On Time - Max	8 ns
Supply Current - Max	3 mA
Product Type	Digital Bus Switch ICs
Factory Pack Quantity	2000
Subcategory	Switch ICs
Supply Voltage - Max	3.6 V
Supply Voltage - Min	2.3 V
Unit Weight	0.004356 oz

For more information, please refer to datasheet

Documents

SN74CB3Q16210DGVR Datasheet

More Information

The SN74CB3Q16210 is a high-bandwidth FET bus switch utilizing a charge pump to elevate the gate voltage of the pass transistor, providing a low and flat ON-state resistance (ron). The low and flat ON-state resistance allows for minimal propagation delay and supports rail-to-rail switching on the data input/output (I/O) ports. The device also features low data I/O capacitance to minimize capacitive loading and signal distortion on the data bus. Specifically designed to support high-bandwidth applications, the SN74CB3Q16210 provides an optimized interface solution ideally suited for broadband communications, networking, and data-intensive computing systems.
