Texas Instruments
SN74CB3Q16211DGVR
SN74CB3Q16211DGVR
Couldn't load pickup availability

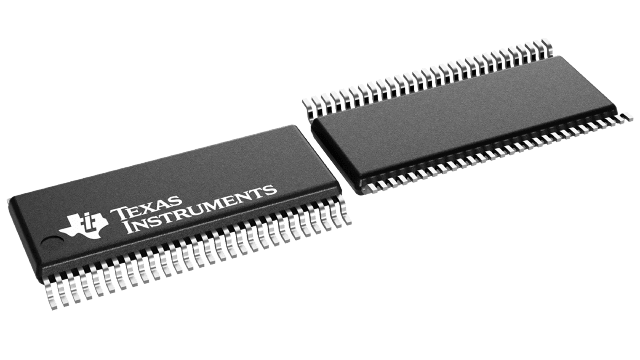

SN74CB3Q16211DGVR Texas Instruments - Yeehing Electronics
3.3-V, 1:1 (SPST), 24-channel general-purpose FET bus switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.016 |
| 100 — 249 | 1.665 |
| 250 — 999 | 1.196 |
| 1,000 + | 0.63 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Bus Switch ICs |
| RoHS | Y |
| Number of Bits | 24 bit |
| On Resistance - Max | 9 Ohms |
| Propagation Delay - Max | 150 ps |
| Operating Supply Voltage | 2.3 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TVSOP-56 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Height | 1.05 mm |
| Length | 11.3 mm |
| Organization | 12 x 1 |
| Series | SN74CB3Q16211 |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Logic Type | CMOS |
| Supply Current - Max | 3 uA |
| Product Type | Digital Bus Switch ICs |
| Factory Pack Quantity | 2000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 2.3 V |
| Unit Weight | 0.005115 oz |
For more information, please refer to datasheet
Documents
| SN74CB3Q16211DGVR Datasheet |
More Information
The SN74CB3Q16211 device is a high-bandwidth FET bus switch utilizing a charge pump to elevate the gate voltage of the pass transistor, providing a low and flat ON-state resistance (ron). The low and flat ON-state resistance allows for minimal propagation delay and supports rail-to-rail switching on the data input/output (I/O) ports. The device also features low data I/O capacitance to minimize capacitive loading and signal distortion on the data bus. Specifically designed to support high-bandwidth applications, the SN74CB3Q16211 device provides an optimized interface solution ideally suited for broadband communications, networking, and data-intensive computing systems.
