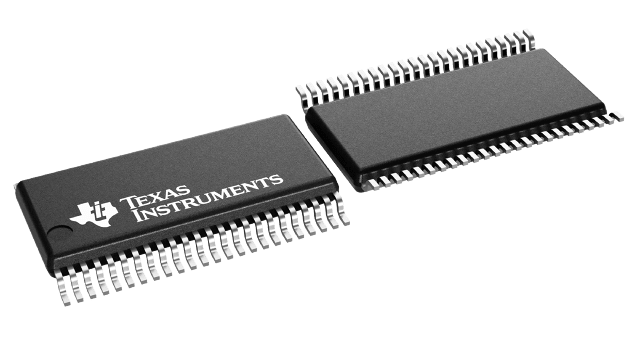

SN74CB3Q16244DGVR Texas Instruments - Yeehing Electronics

10-pF on-state capacitance, 5-V, 1:1 (SPST), 16-channel FET bus switch with 4 control inputs

Pricing (USD)

Quantity	Unit Price
1 — 99	2.724
100 — 249	2.25
250 — 999	1.616
1,000 +	0.85

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Bus Switch ICs
RoHS	Y
Number of Bits	16 bit
On Resistance - Max	10 Ohms
Propagation Delay - Max	180 ps
Operating Supply Voltage	2.3 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	TVSOP-48
Qualification	AEC-Q100
Packaging	Reel
Height	1.05 mm
Length	9.7 mm
Organization	4 x 1
Series	SN74CB3Q16244
Width	4.4 mm
Brand	Texas Instruments
Logic Type	CMOS
Supply Current - Max	2 uA
Product Type	Digital Bus Switch ICs
Factory Pack Quantity	2000
Subcategory	Switch ICs
Supply Voltage - Max	3.6 V
Supply Voltage - Min	2.3 V
Unit Weight	0.004356 oz

For more information, please refer to datasheet

Documents

SN74CB3Q16244DGVR Datasheet

More Information

The SN74CB3Q16244 device is a high-bandwidth FET bus switch using a charge pump to elevate the gate voltage of the pass transistor, providing a low and flat ON-state resistance (ron). The low and flat ON-state resistance allows for minimal propagation delay and supports rail-to-rail switching on the data input/output (I/O) ports. The SN74CB3Q16244 device also features low data I/O capacitance to minimize capacitive loading and signal distortion on the data bus. Specifically designed to support high-bandwidth applications, the SN74CB3Q16244 device provides an optimized interface solution ideally suited for broadband communications, networking, and data-intensive computing systems.
