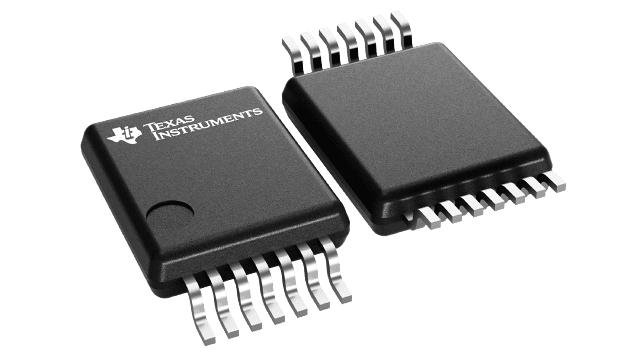

SN74CB3Q3125DGVR Texas Instruments - Yeehing Electronics

3.3-V, 2:1 (SPDT), 4-channel FET bus switch

Pricing (USD)

Quantity	Unit Price
1 — 99	0.756
100 — 249	0.581
250 — 999	0.428
1,000 +	0.21

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

SN74CB3Q3125DGVR Datasheet

More Information

The SN74CB3Q3125 device is a high-bandwidth FET bus switch that uses a charge pump to elevate the gate voltage of the pass transistor, thus providing a low and flat ON-state resistance (ron). The low and flat ON-state resistance allows for minimal propagation delay and supports rail-to-rail switching on the data input/output (I/O) ports. The SN74CB3Q3125 device also features low data I/O capacitance to minimize capacitive loading and signal distortion on the data bus.
