Description

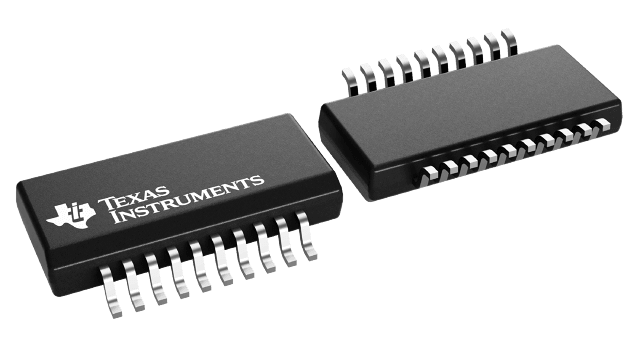

SN74CB3Q3345DBQR Texas Instruments - Yeehing Electronics
3.3-V, 1:1 (SPST), 8-channel FET bus switch with 2 control inputs
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.867 |
100 — 249 | 0.667 |
250 — 999 | 0.491 |
1,000 + | 0.25 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
SN74CB3Q3345DBQR Datasheet |
More Information
The SN74CB3Q3345 is a high-bandwidth FET bus switch utilizing a charge pump to elevate the gate voltage of the pass transistor, providing a low and flat ON-state resistance (ron). The low and flat ON-state resistance allows for minimal propagation delay and supports rail-to-rail switching on the data input/output (I/O) ports. The device also features low data I/O capacitance to minimize capacitive loading and signal distortion on the data bus. Specifically designed to support high-bandwidth applications, the SN74CB3Q3345 provides an optimized interface solution ideally suited for broadband communications, networking, and data-intensive computing systems.
