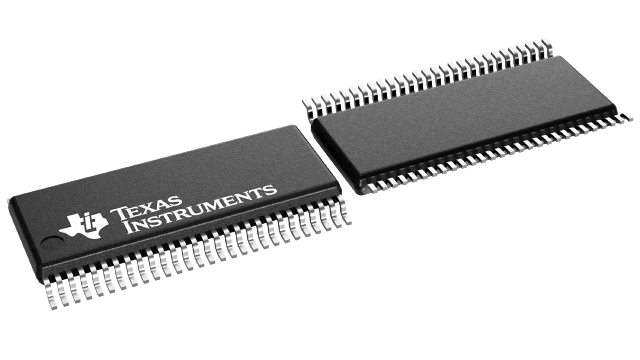

SN74CB3T16211DGVR Texas Instruments - Yeehing Electronics
3.3-V, 1:1 (SPST), 24-channel FET bus switch with level shifter
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.061 |
100 — 249 | 1.702 |
250 — 999 | 1.223 |
1,000 + | 0.64 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
SN74CB3T16211DGVR Datasheet |
More Information
The SN74CB3T16211 is a high-speed TTL-compatible FET bus switch with low ON-state resistance (ron), allowing for minimal propagation delay. The device fully supports mixed-mode signal operation on all data I/O ports by providing voltage translation that tracks VCC. The SN74CB3T16211 supports systems using 5-V TTL, 3.3-V LVTTL, and 2.5-V CMOS switching standards, as well as user-defined switching levels.
