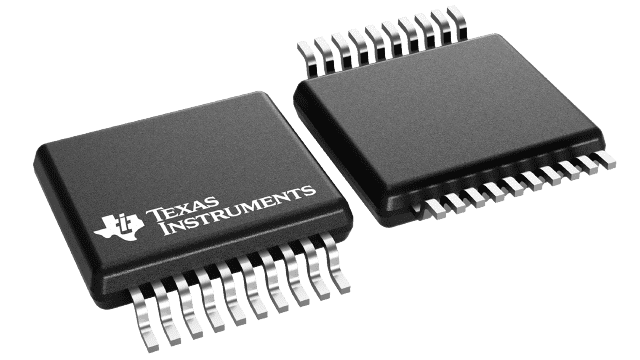

SN74CB3T3245DGVR Texas Instruments - Yeehing Electronics
3.3-V, 1:1 (SPST), 8-channel FET bus switch with level shifter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 47.68 |
| 100 — 249 | 54.65 |
| 250 — 999 | 43.85 |
| 1,000 + | 41.10 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Bus Switch ICs |
| RoHS | Y |
| Number of Bits | 8 bit |
| On Resistance - Max | 8.5 Ohms |
| Propagation Delay - Max | 250 ps |
| Operating Supply Voltage | 2.3 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TVSOP-20 |
| Packaging | Reel |
| Height | 1.05 mm |
| Length | 5 mm |
| Organization | 8 x 1 |
| Series | SN74CB3T3245 |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Logic Type | CMOS |
| Supply Current - Max | 40 uA |
| Product Type | Digital Bus Switch ICs |
| Factory Pack Quantity | 2000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 2.3 V |
| Unit Weight | 0.002123 oz |
For more information, please refer to datasheet
Documents
| SN74CB3T3245DGVR Datasheet |
More Information
The SN74CB3T3245 device is a high-speed TTL-compatible 8-bit FET bus switch with low ON-state resistance (ron), allowing for minimal propagation delay. The device fully supports mixed-mode signal operation on all data I/O ports by providing voltage translation that tracks VCC.
