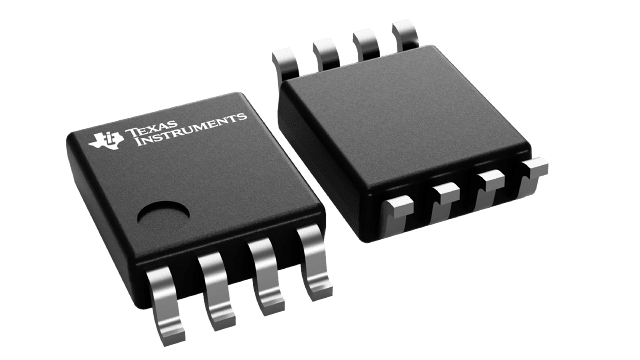

SN74CB3T3306DCUR Texas Instruments - Yeehing Electronics

3.3-V, 1:1 (SPST), 2-channel FET bus switch with level shifter

Pricing (USD)

Quantity	Unit Price
1 — 99	1.304
100 — 249	1.077
250 — 999	0.773
1,000 +	0.41

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Bus Switch ICs
RoHS	Y
Number of Bits	2 bit
On Resistance - Max	8 Ohms
Propagation Delay - Max	250 ps
Operating Supply Voltage	2.3 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	VSSOP-8
Packaging	Reel
Height	0.85 mm
Length	2.3 mm
Organization	1 x 1
Series	SN74CB3T3306
Width	2 mm
Brand	Texas Instruments
Logic Type	CMOS
Product Type	Digital Bus Switch ICs
Factory Pack Quantity	3000
Subcategory	Switch ICs
Supply Voltage - Max	3.6 V
Supply Voltage - Min	2.3 V
Part # Aliases	HPA00850DCUR
Unit Weight	0.000339 oz

For more information, please refer to datasheet

Documents

SN74CB3T3306DCUR Datasheet

More Information

The SN74CB3T3306 device is a high-speed TTL-compatible FET bus switch with low ON-state resistance (ron), allowing for minimal propagation delay. The device fully supports mixed-mode signal operation on all data I/O ports by providing voltage translation that tracks VCC. The SN74CB3T3306 device supports systems using 5-V TTL, 3.3-V LVTTL, and 2.5-V CMOS switching standards, as well as user-defined switching levels.
