Texas Instruments

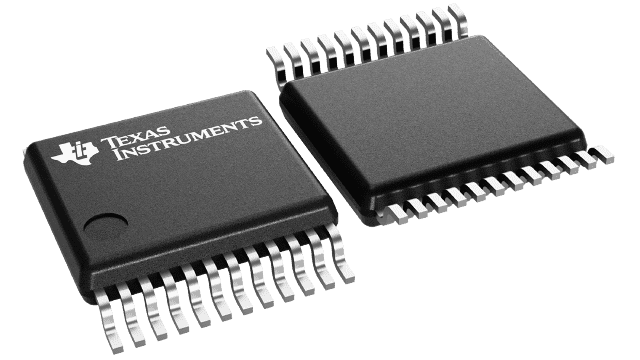

SN74CBT3384ADGVR
SN74CBT3384ADGVR
Regular price
$0.15 USD
Regular price
Sale price
$0.15 USD
Unit price
per
Couldn't load pickup availability
SN74CBT3384ADGVR Texas Instruments - Yeehing Electronics
5-V, 1:1 (SPST), 10-channel general-purpose FET bus switch with 2 control inputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.537 |
| 100 — 249 | 0.365 |
| 250 — 999 | 0.281 |
| 1,000 + | 0.15 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Bus Switch ICs |
| RoHS | Y |
| Number of Bits | 10 bit |
| On Resistance - Max | 7 Ohms |
| Propagation Delay - Max | 250 ps |
| Operating Supply Voltage | 5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TVSOP-24 |
| Packaging | Reel |
| Height | 1.05 mm |
| Length | 5 mm |
| Organization | 5 x 1 |
| Series | SN74CBT3384A |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Logic Type | CMOS |
| Supply Current - Max | 3 uA |
| Product Type | Digital Bus Switch ICs |
| Factory Pack Quantity | 2000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 4 V |
| Unit Weight | 0.002148 oz |
For more information, please refer to datasheet
Documents
| SN74CBT3384ADGVR Datasheet |
More Information
The SN74CBT3384A provides ten bits of high-speed TTL-compatible bus switching. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.
