Texas Instruments

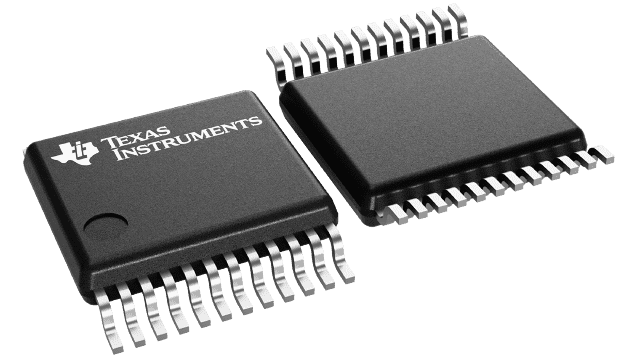

SN74CBT3384CDGVR
SN74CBT3384CDGVR
Regular price
$0.12 USD
Regular price
Sale price
$0.12 USD
Unit price
per
Couldn't load pickup availability
SN74CBT3384CDGVR Texas Instruments - Yeehing Electronics
3.3-V, 1:1 (SPST), 10-channel general-purpose FET bus switch with –2-V undershoot protection
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.511 |
| 100 — 249 | 0.347 |
| 250 — 999 | 0.268 |
| 1,000 + | 0.12 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Bus Switch ICs |
| RoHS | Y |
| Number of Bits | 10 bit |
| On Resistance - Max | 12 Ohms |
| Propagation Delay - Max | 150 ps |
| Operating Supply Voltage | 5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TVSOP-24 |
| Packaging | Reel |
| Height | 1.05 mm |
| Length | 5 mm |
| Organization | 5 x 1 |
| Series | SN74CBT3384C |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Logic Type | CMOS |
| Supply Current - Max | 3 uA |
| Product Type | Digital Bus Switch ICs |
| Factory Pack Quantity | 2000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 4 V |
| Unit Weight | 0.002148 oz |
For more information, please refer to datasheet
Documents
| SN74CBT3384CDGVR Datasheet |
More Information
The SN74CBT3384C is a high-speed TTL-compatible FET bus switch with low ON-state resistance (ron), allowing for minimal propagation delay. Active Undershoot-Protection Circuitry on the A and B ports of the SN74CBT3384C provides protection for undershoot up to 2 V by sensing an undershoot event and ensuring that the switch remains in the proper OFF state.
