Texas Instruments

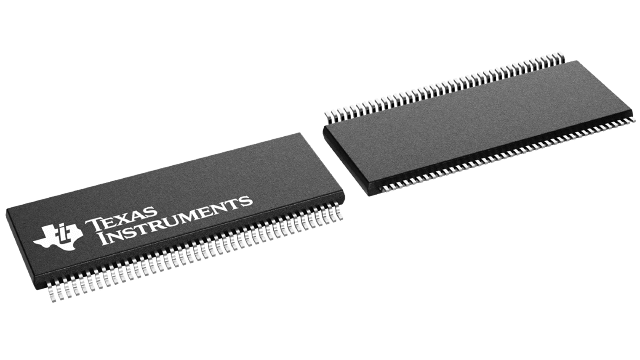

SN74CBT34X245DBBR
SN74CBT34X245DBBR
Regular price
$1.36 USD
Regular price
Sale price
$1.36 USD
Unit price
per
Couldn't load pickup availability
SN74CBT34X245DBBR Texas Instruments - Yeehing Electronics
5-V, 32-channel FET bus switch for partial-power-down applications with up to 4 control inputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.44 |
| 100 — 249 | 3.014 |
| 250 — 999 | 2.113 |
| 1,000 + | 1.36 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Bus Switch ICs |
| RoHS | Y |
| Number of Bits | 32 bit |
| On Resistance - Max | 7 Ohms |
| Propagation Delay - Max | 250 ps |
| Operating Supply Voltage | 5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TSSOP-80 |
| Packaging | Reel |
| Height | 1.15 mm |
| Length | 17 mm |
| Organization | 8 x 1 |
| Series | SN74CBT34X245 |
| Width | 6.1 mm |
| Brand | Texas Instruments |
| Logic Type | CMOS |
| Supply Current - Max | 6 uA |
| Product Type | Digital Bus Switch ICs |
| Factory Pack Quantity | 2000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 4 V |
| Unit Weight | 0.009351 oz |
For more information, please refer to datasheet
Documents
| SN74CBT34X245DBBR Datasheet |
More Information
The SN74CBT34X245 provides 32 bits of high-speed TTL-compatible bus switching. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.
