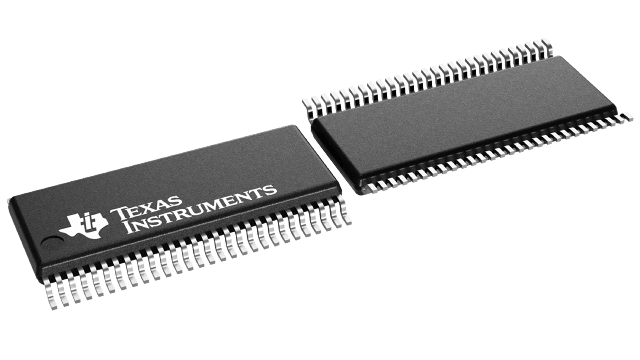

SN74CBTD16211DGVR Texas Instruments - Yeehing Electronics
5-V, 1:1 (SPST), 24-channel FET bus switch with level shifter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.752 |
| 100 — 249 | 1.447 |
| 250 — 999 | 1.039 |
| 1,000 + | 0.45 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Bus Switch ICs |
| RoHS | Y |
| Number of Bits | 24 bit |
| On Resistance - Max | 7 Ohms |
| Propagation Delay - Max | 250 ps |
| Operating Supply Voltage | 5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TVSOP-56 |
| Packaging | Reel |
| Height | 1.05 mm |
| Length | 11.3 mm |
| Organization | 12 x 1 |
| Series | SN74CBTD16211 |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Logic Type | CMOS |
| Supply Current - Max | 1.5 uA |
| Product Type | Digital Bus Switch ICs |
| Factory Pack Quantity | 2000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 4.5 V |
| Unit Weight | 0.005115 oz |
For more information, please refer to datasheet
Documents
| SN74CBTD16211DGVR Datasheet |
More Information
The SN74CBTD16211 provides 24 bits of high-speed TTL-compatible bus switching. The low on-state resistance of the switch allows connections to be made with minimal propagation delay. A diode to VCC is integrated in the circuit to allow for level shifting from 5-V signals at the device inputs to 3.3-V signals at the device outputs.
