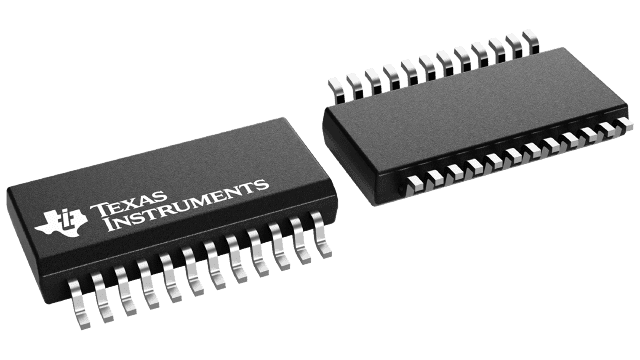

SN74CBTD3384CDBQR Texas Instruments - Yeehing Electronics
5-V, 1:1 (SPST), 10-channel general-purpose FET bus switch with –2-V undershoot protection
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.524 |
100 — 249 | 0.403 |
250 — 999 | 0.297 |
1,000 + | 0.15 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
SN74CBTD3384CDBQR Datasheet |
More Information
The SN74CBTD3384C is a high-speed TTL-compatible FET bus switch with low ON-state resistance, allowing for minimal propagation delay. This device features an integrated diode to VCC to provide level shifting for 5-V input down to 3.3-V output levels. Active Undershoot-Protection Circuitry on the A and B ports of the SN74CBTD3384C provides protection for undershoot down to 2 V by sensing an undershoot event and ensuring that the switch remains in the proper state.
