Texas Instruments
SN74CBTLV16212VR
SN74CBTLV16212VR
Regular price
$0.75 USD
Regular price
Sale price
$0.75 USD
Unit price
per
Couldn't load pickup availability

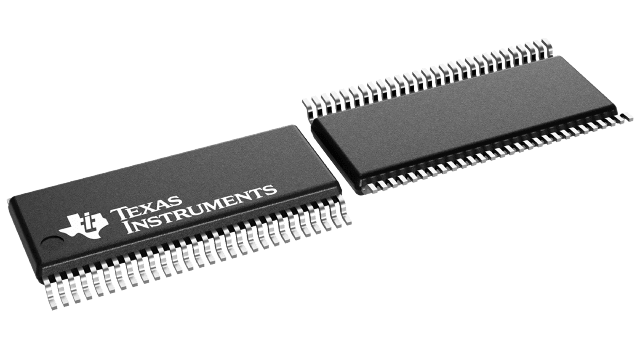

SN74CBTLV16212VR Texas Instruments - Yeehing Electronics
3.3-V, crosspoint/exchange, 24-channel FET bus switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.165 |
| 100 — 249 | 1.897 |
| 250 — 999 | 1.33 |
| 1,000 + | 0.75 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Bus Switch ICs |
| RoHS | Y |
| Number of Bits | 24 bit |
| On Resistance - Max | 27 Ohms |
| Propagation Delay - Max | 250 ps |
| Operating Supply Voltage | 2.3 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TVSOP-56 |
| Packaging | Reel |
| Height | 1.05 mm |
| Length | 11.3 mm |
| Series | SN74CBTLV16212 |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Product Type | Digital Bus Switch ICs |
| Factory Pack Quantity | 2000 |
| Subcategory | Switch ICs |
| Unit Weight | 0.005115 oz |
For more information, please refer to datasheet
Documents
| SN74CBTLV16212VR Datasheet |
More Information
The SN74CBTLV16212 provides 24 bits of high-speed bus switching or exchanging. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.
