Description

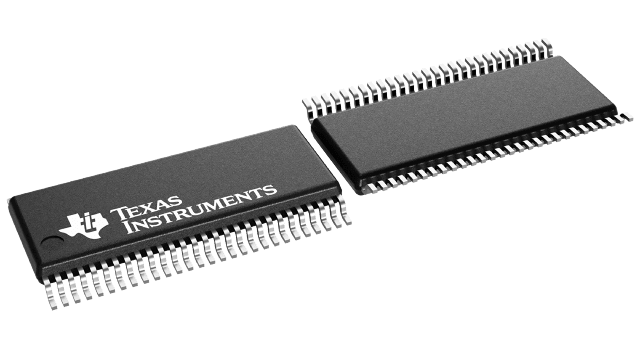

SN74CBTLV16292VR Texas Instruments - Yeehing Electronics
3.3-V, 1:1 (SPST), 12-channel general-purpose FET bus switch with internal pulldown resistors
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.985 |
| 100 — 249 | 1.639 |
| 250 — 999 | 1.177 |
| 1,000 + | 0.51 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Encoders, Decoders, Multiplexers & Demultiplexers |
| RoHS | Y |
| Product | Multiplexers / Demultiplexers |
| Number of Bits | 12 bit |
| Supply Voltage - Min | 2.3 V |
| Supply Voltage - Max | 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TVSOP-56 |
| Packaging | Reel |
| Features | Powered-off protection, Break-before-make |
| Height | 1.05 mm |
| Length | 11.3 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | SN74CBTLV16292 |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Supply Current - Max | 10 uA |
| Operating Supply Voltage | 2.3 V to 3.6 V |
| Product Type | Encoders, Decoders, Multiplexers & Demultiplexers |
| Factory Pack Quantity | 2000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.005115 oz |
For more information, please refer to datasheet
Documents
| SN74CBTLV16292VR Datasheet |
More Information
The SN74CBTLV16292 is a 12-bit 1-of-2 high-speed FET multiplexer/demultiplexer. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.
