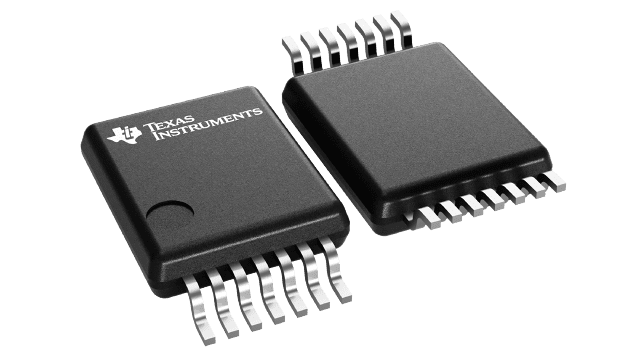

SN74CBTLV3125DGVR Texas Instruments - Yeehing Electronics

3.3-V, 1:1 (SPST), 4-channel FET bus switch with powered-off protection

Pricing (USD)

Quantity	Unit Price
1 — 99	0.551
100 — 249	0.374
250 — 999	0.289
1,000 +	0.15

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Bus Switch ICs
RoHS	Y
Number of Bits	4 bit
On Resistance - Max	7 Ohms
Propagation Delay - Max	250 ps
Operating Supply Voltage	2.3 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	TVSOP-14
Packaging	Reel
Height	1.05 mm
Length	3.6 mm
Organization	1 x 1
Series	SN74CBTLV3125
Width	4.4 mm
Brand	Texas Instruments
Logic Type	CMOS
Supply Current - Max	10 uA
Product Type	Digital Bus Switch ICs
Factory Pack Quantity	2000
Subcategory	Switch ICs
Supply Voltage - Max	3.6 V
Supply Voltage - Min	2.3 V
Unit Weight	0.001474 oz

For more information, please refer to datasheet

Documents

SN74CBTLV3125DGVR Datasheet

More Information

The SN74CBTLV3125 quadruple FET bus switch features independent line switches. Each switch is disabled when the associated output-enable (OE) input is high.
