Texas Instruments

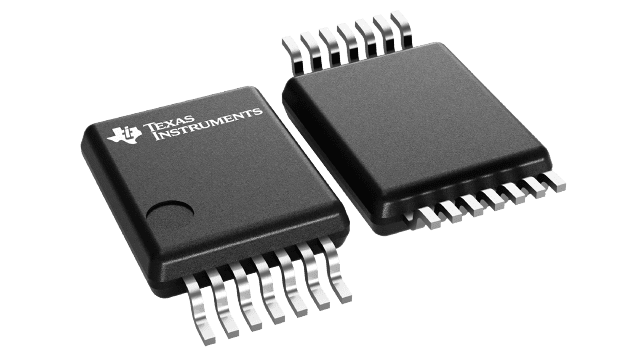

SN74CBTLV3126DGVR
SN74CBTLV3126DGVR
Regular price
$0.10 USD
Regular price
Sale price
$0.10 USD
Unit price
per
Couldn't load pickup availability
SN74CBTLV3126DGVR Texas Instruments - Yeehing Electronics
3.3-V, 1:1 (SPST), 4-channel FET bus switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.488 |
| 100 — 249 | 0.332 |
| 250 — 999 | 0.256 |
| 1,000 + | 0.10 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Bus Switch ICs |
| RoHS | Y |
| Number of Bits | 4 bit |
| On Resistance - Max | 7 Ohms |
| Propagation Delay - Max | 250 ps |
| Operating Supply Voltage | 2.3 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TVSOP-14 |
| Packaging | Reel |
| Height | 1.05 mm |
| Length | 3.6 mm |
| Organization | 1 x 1 |
| Series | SN74CBTLV3126 |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Logic Type | CMOS |
| Supply Current - Max | 10 uA |
| Product Type | Digital Bus Switch ICs |
| Factory Pack Quantity | 2000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 2.3 V |
| Unit Weight | 0.001474 oz |
For more information, please refer to datasheet
Documents
| SN74CBTLV3126DGVR Datasheet |
More Information
The SN74CBTLV3126 quadruple FET bus switch features independent line switches. Each switch is disabled when the associated output-enable (OE) input is low.
