Texas Instruments
SN74CBTLV3251DGVR
SN74CBTLV3251DGVR
Regular price
$0.21 USD
Regular price
Sale price
$0.21 USD
Unit price
per
Couldn't load pickup availability

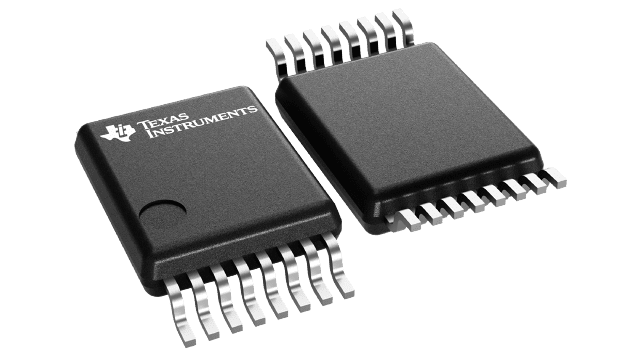

SN74CBTLV3251DGVR Texas Instruments - Yeehing Electronics
3.3-V, 8:1, 1-channel analog multiplexer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.892 |
| 100 — 249 | 0.686 |
| 250 — 999 | 0.505 |
| 1,000 + | 0.21 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Multiplexer Switch ICs |
| RoHS | Y |
| Product | Multiplexers/Demultiplexers |
| Number of Channels | 8 Channel |
| Configuration | 1 x 8 |
| On Resistance - Max | 7 Ohms |
| Operating Supply Voltage | 2.3 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TVSOP-16 |
| Packaging | Reel |
| Bandwidth | 200 MHz |
| Height | 1.05 mm |
| Length | 3.6 mm |
| Series | SN74CBTLV3251 |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Supply Current - Max | 10 uA |
| Product Type | Multiplexer Switch ICs |
| Factory Pack Quantity | 2000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 2.3 V |
| Unit Weight | 0.001478 oz |
For more information, please refer to datasheet
Documents
| SN74CBTLV3251DGVR Datasheet |
More Information
The SN74CBTLV3251 device is a 1-of-8 high-speed FET multiplexer/demultiplexer. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.
