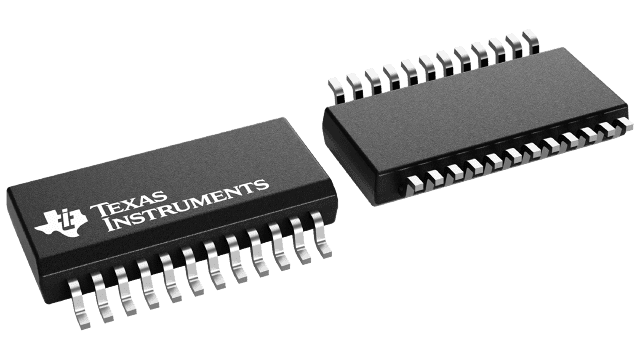

SN74CBTLV3383DBQR Texas Instruments - Yeehing Electronics
3.3-V, crosspoint/exchange, 10-channel FET bus switch
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.526 |
100 — 249 | 0.405 |
250 — 999 | 0.298 |
1,000 + | 0.15 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Digital Bus Switch ICs |
RoHS | Y |
Number of Bits | 10 bit |
On Resistance - Max | 27 Ohms |
Propagation Delay - Max | 250 ps |
Operating Supply Voltage | 2.3 V to 3.6 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | QSOP-24 |
Packaging | Reel |
Height | 1.5 mm |
Length | 8.75 mm |
Series | SN74CBTLV3383 |
Width | 4 mm |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Product Type | Digital Bus Switch ICs |
Factory Pack Quantity | 2500 |
Subcategory | Switch ICs |
Unit Weight | 0.059966 oz |
For more information, please refer to datasheet
Documents
SN74CBTLV3383DBQR Datasheet |
More Information
The SN74CBTLV3383 provides ten bits of high-speed bus switching or exchanging. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.
