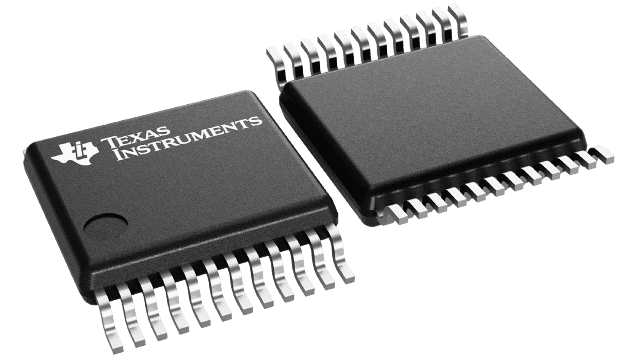

SN74CBTLV3384DGVR Texas Instruments - Yeehing Electronics

3.3-V, 1:1 (SPST), 10-channel general-purpose FET bus switch with 2 control inputs

Pricing (USD)

Quantity	Unit Price
1 — 99	0.538
100 — 249	0.414
250 — 999	0.305
1,000 +	0.13

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Bus Switch ICs
RoHS	Y
Number of Bits	10 bit
On Resistance - Max	7 Ohms
Propagation Delay - Max	250 ps
Operating Supply Voltage	2.3 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	TVSOP-24
Packaging	Reel
Height	1.05 mm
Length	5 mm
Organization	5 x 1
Series	SN74CBTLV3384
Width	4.4 mm
Brand	Texas Instruments
Logic Type	CMOS
Supply Current - Max	10 uA
Product Type	Digital Bus Switch ICs
Factory Pack Quantity	2000
Subcategory	Switch ICs
Supply Voltage - Max	3.6 V
Supply Voltage - Min	2.3 V
Unit Weight	0.002148 oz

For more information, please refer to datasheet

Documents

SN74CBTLV3384DGVR Datasheet

More Information

The SN74CBTLV3384 provides ten bits of high-speed bus switching. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.
