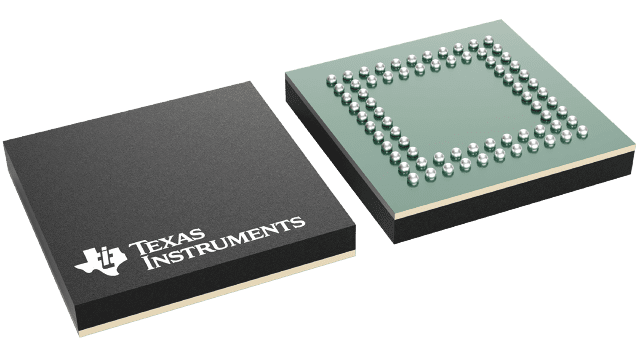

SN74CBTU4411ZSTR Texas Instruments - Yeehing Electronics
2.5-V, 4:1, 11-channel analog mutliplexer suitable for DDR-II applications
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.705 |
100 — 249 | 2.205 |
250 — 999 | 1.733 |
1,000 + | 1.03 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
SN74CBTU4411ZSTR Datasheet |
More Information
The SN74CBTU4411 device is a high-bandwidth, SSTL_18 compatible FET multiplexer/demultiplexer with low ON-state resistance (ron). The device uses an internal charge pump to elevate the gate voltage of the pass transistor, providing a low and flat ron. The low and flat ron allows for minimal propagation delay and supports rail-to-rail signaling on data input/output (I/O) ports. The device also features very low data I/O capacitance to minimize capacitive loading and signal distortion on the data bus. Matched ron and I/O capacitance among channels results in extremely low differential and rising or falling edge skew. This allows the device to show optimal performance in DDR-II applications.
