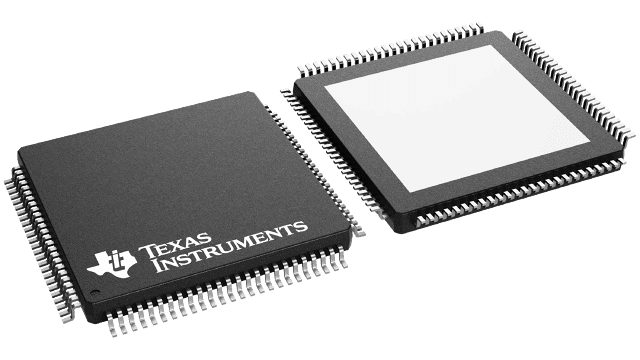

SN74FB1653PCA Texas Instruments - Yeehing Electronics
17-bit LVTTL/BTL universal storage transceivers with buffered clock lines
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 16.326 |
100 — 249 | 14.261 |
250 — 999 | 10.996 |
1,000 + | 6.88 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Bus Transceivers |
RoHS | Y |
Logic Family | FB |
Input Level | TTL |
Output Level | BTL |
Output Type | 3-State/Open Collector |
High Level Output Current | - 3 mA |
Low Level Output Current | 100 mA |
Propagation Delay Time | 15.4 ns |
Supply Voltage - Max | 5.5 V |
Supply Voltage - Min | 4.5 V |
Minimum Operating Temperature | 0 C |
Maximum Operating Temperature | + 70 C |
Package / Case | HLQFP-100 |
Packaging | Tray |
Function | Universal Bus Transceiver |
Height | 1.4 mm |
Length | 14 mm |
Number of Circuits | 2 |
Operating Temperature Range | 0 C to + 70 C |
Product | Buffer Type Transceiver |
Series | SN74FB1653 |
Technology | BiCMOS |
Width | 14 mm |
Brand | Texas Instruments |
Mounting Style | SMD/SMT |
Number of Channels | 17 |
Supply Current - Max | 145 mA |
Moisture Sensitive | Yes |
Operating Supply Voltage | 5 V |
Polarity | Inverting |
Product Type | Bus Transceivers |
Factory Pack Quantity | 90 |
Subcategory | Logic ICs |
Tradename | USR |
Triggering Type | Positive Edge |
For more information, please refer to datasheet
Documents
SN74FB1653PCA Datasheet |
More Information
The SN74FB1653 contains an 8-bit and a 9-bit transceiver with a buffered clock. The clock and transceivers are designed to translate signals between LVTTL and BTL environments. The device is designed specifically to be compatible with IEEE Std 1194.1-1991 (BTL).
