Description

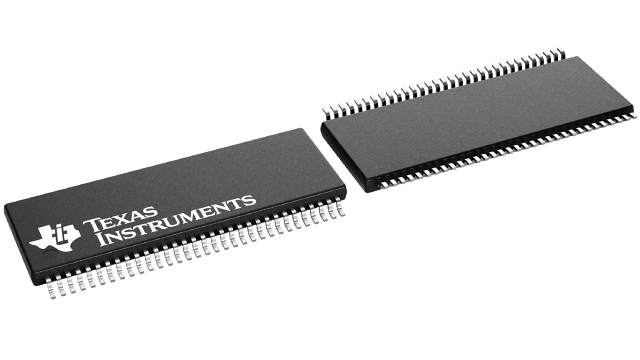

SN74GTL1655DGGR Texas Instruments - Yeehing Electronics
16-Bit LVTTL To GTL/GTL+ Universal Bus Transceivers with Live Insertion
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 8.501 |
100 — 249 | 6.93 |
250 — 999 | 5.447 |
1,000 + | 3.23 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Translation - Voltage Levels |
RoHS | Y |
Propagation Delay Time | 6.7 ns |
Supply Voltage - Max | 3.6 V |
Supply Voltage - Min | 3 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | TSSOP-64 |
Packaging | Reel |
Features | Partial power down (Ioff), Bus-Hold, Power up 3 state, Bias Vcc, OEC output edge control, Variable |
Operating Temperature Range | - 40 C to + 85 C |
Output Type | 3-State |
Series | SN74GTL1655 |
Brand | Texas Instruments |
Logic Family | GTL |
Logic Type | BiCMOS |
High Level Output Current | - 24 mA |
Low Level Output Current | 100 mA |
Operating Supply Current | 5 mA |
Product Type | Translation - Voltage Levels |
Factory Pack Quantity | 2000 |
Subcategory | Logic ICs |
Unit Weight | 0.009263 oz |
For more information, please refer to datasheet
Documents
SN74GTL1655DGGR Datasheet |
More Information
The SN74GTL1655 is a high-drive (100 mA), low-output-impedance (12 ) 16-bit UBT transceiver that provides LVTTL-to-GTL/GTL+ and GTL/GTL+-to-LVTTL signal-level translation. This device is partitioned as two 8-bit transceivers and combines D-type flip-flops and D-type latches to allow for transparent, latched, and clocked modes of data transfer similar to the 16501 function. This device provides an interface between cards operating at LVTTL logic levels and a backplane operating at GTL/GTL+ signal levels. Higher-speed operation is a direct result of the reduced output swing (<1 V), reduced input threshold levels, and OEC circuitry. The high drive is suitable for driving double-terminated low-impedance backplanes using incident-wave switching.
