Description

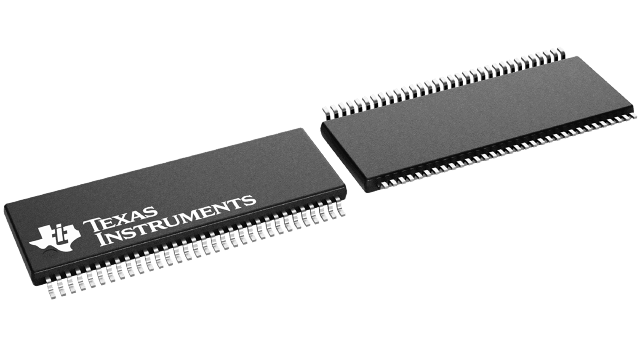

SN74GTL16622ADGGR Texas Instruments - Yeehing Electronics
18-Bit LVTTL To GTL/GTL+ Bus Transceiver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 11.819 |
| 100 — 249 | 10.324 |
| 250 — 999 | 7.96 |
| 1,000 + | 4.98 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| SN74GTL16622ADGGR Datasheet |
More Information
The SN74GTL16622A is an 18-bit registered bus transceiver that provides LVTTL-to-GTL/GTL+ and GTL/GTL+-to-LVTTL signal-level translation. This device is partitioned as two separate 9-bit transceivers with individual clock-enable controls and contains D-type flip-flops for temporary storage of data flowing in either direction. This device provides an interface between cards operating at LVTTL logic levels and a backplane operating at GTL/GTL+ signal levels. Higher speed operation is a direct result of the reduced output swing (<1 V), reduced input threshold levels, and OEC circuitry.
