Texas Instruments
SN74GTLPH1645DGVR
SN74GTLPH1645DGVR
Couldn't load pickup availability

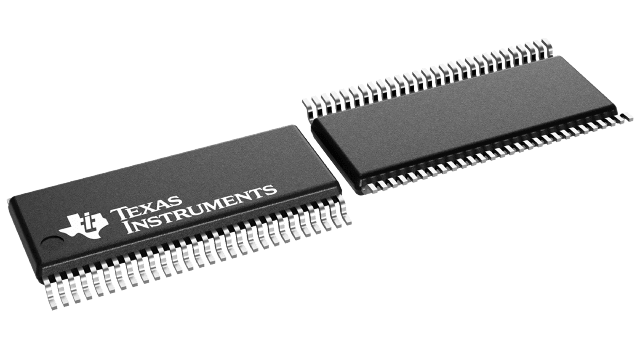

SN74GTLPH1645DGVR Texas Instruments - Yeehing Electronics
16-Bit LVTTL-to-GTLP Adjustable-Edge-Rate Bus Transceiver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.36 |
| 100 — 249 | 2.739 |
| 250 — 999 | 2.153 |
| 1,000 + | 1.28 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Translation - Voltage Levels |
| RoHS | Y |
| Propagation Delay Time | 9.4 ns |
| Supply Voltage - Max | 3.45 V |
| Supply Voltage - Min | 3.15 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TVSOP-56 |
| Packaging | Reel |
| Features | Partial power down (Ioff), Over-voltage tolerant inputs, Power up 3 state, Bias Vcc, Variable outpu |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | SN74GTLPH1645 |
| Brand | Texas Instruments |
| Logic Family | GTLP |
| Operating Supply Current | 40 mA |
| Product Type | Translation - Voltage Levels |
| Factory Pack Quantity | 2000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.005115 oz |
For more information, please refer to datasheet
Documents
| SN74GTLPH1645DGVR Datasheet |
More Information
The SN74GTLPH1645 is a high-drive, 16-bit bus transceiver that provides LVTTL-to-GTLP and GTLP-to-LVTTL signal-level translation. It is partitioned as two 8-bit transceivers. The device provides a high-speed interface between cards operating at LVTTL logic levels and a backplane operating at GTLP signal levels. High-speed (about three times faster than standard LVTTL or TTL) backplane operation is a direct result of GTLP's reduced output swing (<1 V), reduced input threshold levels, improved differential input, OEC circuitry, and TI-OPC circuitry. Improved GTLP OEC and TI-OPC circuits minimize bus-settling time and have been designed and tested using several backplane models. The high drive allows incident-wave switching in heavily loaded backplanes with equivalent load impedance down to 11 .
