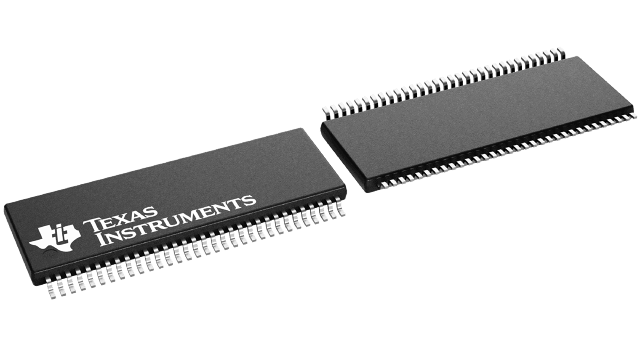

SN74GTLPH1655DGGR Texas Instruments - Yeehing Electronics
16-Bit LVTTL-To-GTLP Adjustable-Edge-Rate Universal Bus Transceiver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.501 |
| 100 — 249 | 6.93 |
| 250 — 999 | 5.447 |
| 1,000 + | 3.23 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| SN74GTLPH1655DGGR Datasheet |
More Information
The SN74GTLPH1655 is a high-drive, 16-bit UBT transceiver that provides LVTTL-to-GTLP and GTLP-to-LVTTL signal-level translation. It is partitioned as two 8-bit transceivers and allows for transparent, latched, and clocked modes of data transfer. The device provides a high-speed interface between cards operating at LVTTL logic levels and a backplane operating at GTLP signal levels. High-speed (about three times faster than standard LVTTL or TTL) backplane operation is a direct result of GTLP's reduced output swing (<1 V), reduced input threshold levels, improved differential input, OEC circuitry, and TI-OPc circuitry. Improved GTLP OEC and TI-OPC circuits minimize bus-settling time and have been designed and tested using several backplane models. The high drive allows incident-wave switching in heavily loaded backplanes with equivalent load impedance down to 11 .
