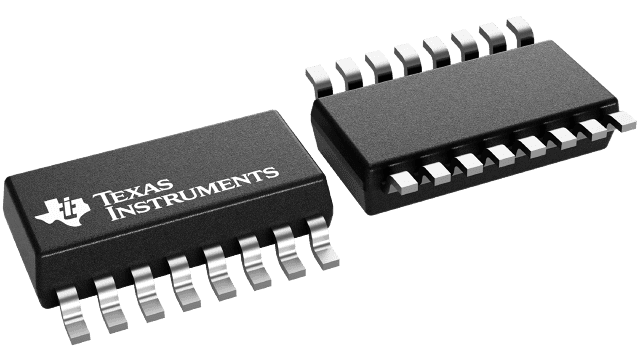

SN74HCS138QDYYRQ1 Texas Instruments - Yeehing Electronics

Automotive 3-line to 8-line decoders/demultiplexer

Pricing (USD)

Quantity	Unit Price
1 — 99	0.497
100 — 249	0.337
250 — 999	0.26
1,000 +	0.12

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

SN74HCS138QDYYRQ1 Datasheet

More Information

The SN74HCS138-Q1 is a three to eight decoder with one standard output strobe (G2) and two active low output strobes (G 1 and G 0). When the outputs are gated by any of the strobe inputs, they are all forced into the high state. When the outputs are not disabled by the strobe inputs, only the selected output is low while all others are high.
