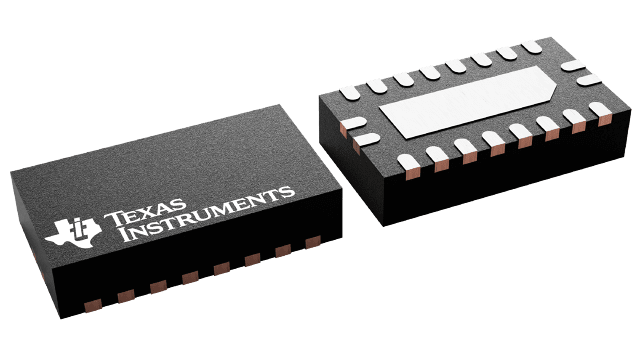

SN74HCS240RKSR Texas Instruments - Yeehing Electronics

Octal buffers and line drivers with 3-state outputs and Schmitt-trigger inputs

Pricing (USD)

Quantity	Unit Price
1 — 99	0.476
100 — 249	0.324
250 — 999	0.25
1,000 +	0.12

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

SN74HCS240RKSR Datasheet

More Information

This device contains eight independent inverting line drivers with 3-state outputs and Schmitt-trigger inputs. Each channel performs the Boolean function Y = A in positive logic. The channels are grouped in sets of four, with one OE pin controlling each set. The outputs can be put into a hi-Z state by applying a high on the associated OE pin.
