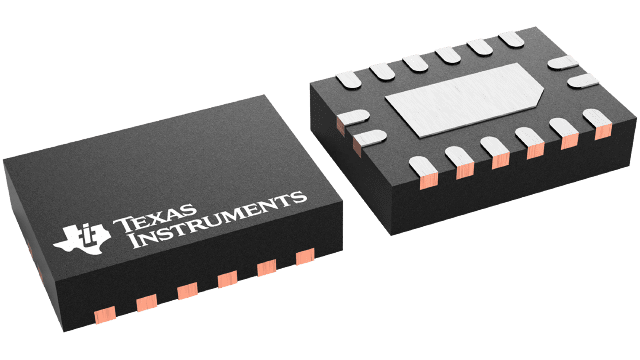

SN74HCS594QBQBRQ1 Texas Instruments - Yeehing Electronics
Automotive 8-bit shift registers with output registers
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.565 |
| 100 — 249 | 0.384 |
| 250 — 999 | 0.296 |
| 1,000 + | 0.14 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| SN74HCS594QBQBRQ1 Datasheet |
More Information
The SN74HCS594-Q1 device contains an 8-bit, serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. All inputs include Schmitt triggers, eliminating any erroneous data outputs due to slow-edged or noisy input signals. The storage register has parallel outputs. Separate clocks and direct overriding clear (SRCLR, RCLR) inputs are provided for both the shift and storage register. A serial output (QH) is provided for cascading.
