Texas Instruments
SN74HCT14DGVR
SN74HCT14DGVR
Regular price
$0.05 USD
Regular price
Sale price
$0.05 USD
Unit price
per
Couldn't load pickup availability

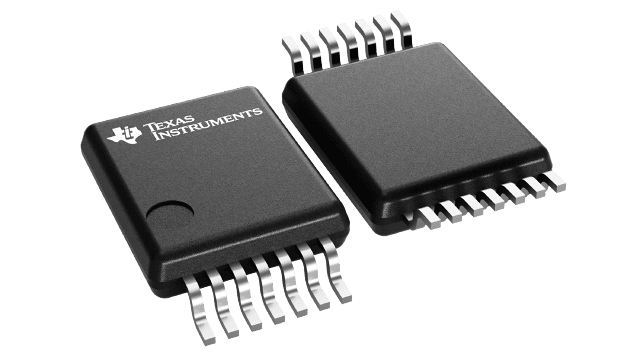

SN74HCT14DGVR Texas Instruments - Yeehing Electronics
6-ch, 4.5-V to 5.5-V inverters with Schmitt-Trigger inputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.224 |
| 100 — 249 | 0.152 |
| 250 — 999 | 0.117 |
| 1,000 + | 0.05 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Inverters |
| RoHS | Y |
| Number of Circuits | 6 Circuit |
| Logic Family | HCT |
| Logic Type | CMOS |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 4.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TVSOP-14 |
| Packaging | Reel |
| Function | Inverter Schmitt Trigger |
| Input Type | Schmitt Trigger |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Type | CMOS |
| Series | SN74HCT14 |
| Brand | Texas Instruments |
| Number of Output Lines | 6 Output |
| High Level Output Current | - 4 mA |
| Low Level Output Current | 4 mA |
| Operating Supply Voltage | 5 V |
| Product Type | Inverters |
| Propagation Delay Time | 38 ns |
| Factory Pack Quantity | 2000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.001474 oz |
For more information, please refer to datasheet
Documents
| SN74HCT14DGVR Datasheet |
More Information
The SNx4HCT14 devices contain six independent inverters. The devices perform the Boolean function Y = A in positive logic.
