Texas Instruments
SN74LV04ADGVR
SN74LV04ADGVR
Regular price
$0.07 USD
Regular price
Sale price
$0.07 USD
Unit price
per
Couldn't load pickup availability

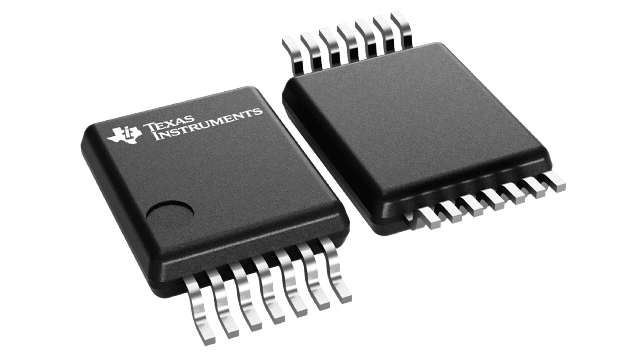

SN74LV04ADGVR Texas Instruments - Yeehing Electronics
6-ch, 2-V to 5.5-V inverters
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.382 |
| 100 — 249 | 0.259 |
| 250 — 999 | 0.2 |
| 1,000 + | 0.07 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Inverters |
| RoHS | Y |
| Number of Circuits | 6 Circuit |
| Logic Family | LV-A |
| Logic Type | CMOS |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | TVSOP-14 |
| Packaging | Reel |
| Function | Inverter |
| Input Type | LVTTL |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Type | CMOS |
| Series | SN74LV04A |
| Brand | Texas Instruments |
| Number of Output Lines | 6 Output |
| High Level Output Current | - 12 mA |
| Low Level Output Current | 12 mA |
| Operating Supply Voltage | 5 V |
| Product Type | Inverters |
| Propagation Delay Time | 8.5 ns |
| Factory Pack Quantity | 2000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.001474 oz |
For more information, please refer to datasheet
Documents
| SN74LV04ADGVR Datasheet |
More Information
This hex inverter is designed for 2-V to 5.5-V VCC operation. The SN74LV04A device contains six independent inverters. This device perform the Boolean function Y = A.
