Description

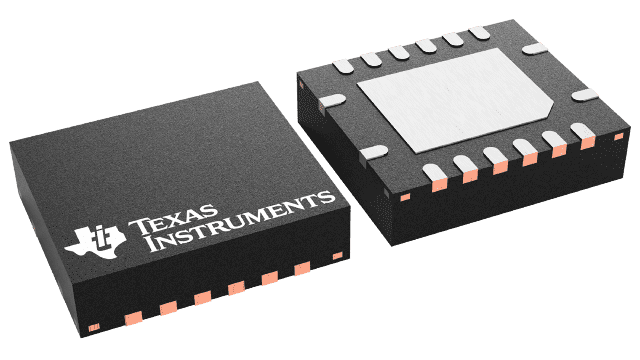

SN74LV123ARGYR Texas Instruments - Yeehing Electronics
Dual Retriggerable Monostable Multivibrators
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.456 |
| 100 — 249 | 0.31 |
| 250 — 999 | 0.239 |
| 1,000 + | 0.11 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Monostable Multivibrator |
| RoHS | Y |
| Elements per Chip | 2 |
| Logic Family | LV |
| Logic Type | Monostable Multivibrator |
| Package / Case | VQFN-16 |
| Supply Current - Max | 0.02 mA |
| Propagation Delay Time | 36 ns, 24.1 ns, 14 ns |
| High Level Output Current | - 12 mA |
| Low Level Output Current | 12 mA |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Height | 0.8 mm |
| Length | 4 mm |
| Series | SN74LV123A |
| Width | 3.5 mm |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 2.5 V, 3.3 V, 5 V |
| Product Type | Monostable Multivibrator |
| Factory Pack Quantity | 3000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.001312 oz |
For more information, please refer to datasheet
Documents
| SN74LV123ARGYR Datasheet |
More Information
The LV123A devices are dual retriggerable monostable multivibrators designed for 2-V to 5.5-V VCC operation.
