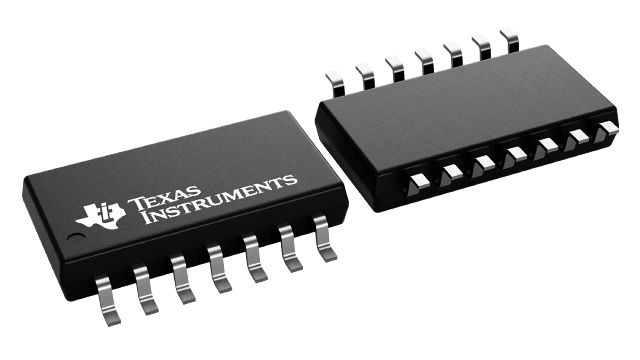

SN74LV125ATNSR Texas Instruments - Yeehing Electronics

4-ch, 4.5-V to 5.5-V buffers with TTL-compatible CMOS inputs and 3-state outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	0.531
100 — 249	0.361
250 — 999	0.278
1,000 +	0.13

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

SN74LV125ATNSR Datasheet

More Information

The SN74LV125AT is a quadruple bus buffer gate. This device features independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE) input is high.
