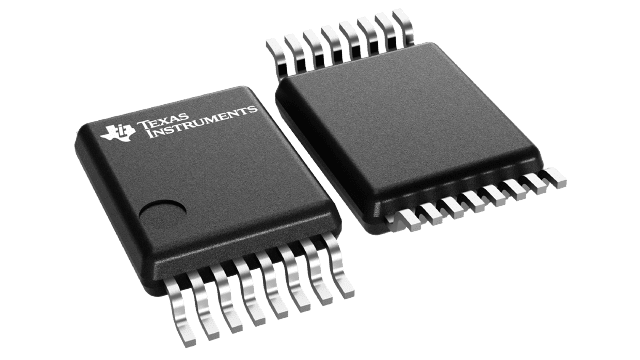

SN74LV138ADGVR Texas Instruments - Yeehing Electronics
3-Line To 8-Line Decoders/Demultiplexers
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.445 |
| 100 — 249 | 0.302 |
| 250 — 999 | 0.233 |
| 1,000 + | 0.11 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Encoders, Decoders, Multiplexers & Demultiplexers |
| RoHS | Y |
| Product | Decoders / Demultiplexers |
| Logic Family | LV-A |
| Number of Input Lines | 3 Input |
| Number of Output Lines | 8 Output |
| Propagation Delay Time | 15 ns |
| Supply Voltage - Min | 2 V |
| Supply Voltage - Max | 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TVSOP-16 |
| Packaging | Reel |
| Function | Decoder/Demultiplexer |
| Height | 1.05 mm |
| Length | 3.6 mm |
| Number of Circuits | Single |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | SN74LV138A |
| Technology | CMOS |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Logic Type | Decoders/Demultiplexers |
| Supply Current - Max | 0.02 mA |
| High Level Output Current | - 12 mA |
| Low Level Output Current | 12 mA |
| Maximum Clock Frequency | 70 MHz |
| Operating Supply Voltage | 2 V to 5.5 V |
| Product Type | Encoders, Decoders, Multiplexers & Demultiplexers |
| Factory Pack Quantity | 2000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.001478 oz |
For more information, please refer to datasheet
Documents
| SN74LV138ADGVR Datasheet |
More Information
The 'LV138A devices are 3-line to 8-line decoders/demultiplexers designed for 2-V to 5.5-V VCC operation.
