Texas Instruments

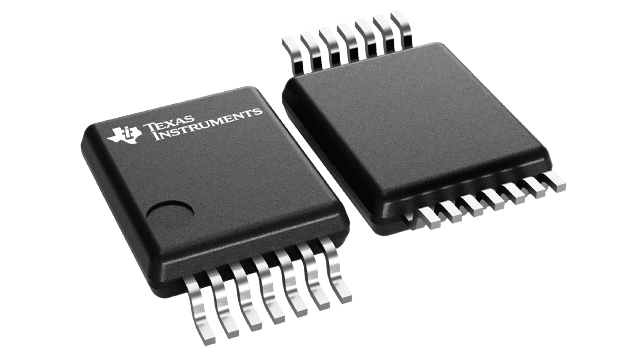

SN74LV164ADGVR
SN74LV164ADGVR
Regular price
$0.11 USD
Regular price
Sale price
$0.11 USD
Unit price
per
Couldn't load pickup availability
SN74LV164ADGVR Texas Instruments - Yeehing Electronics
8-Bit Parallel-Out Serial Shift Registers
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.393 |
| 100 — 249 | 0.267 |
| 250 — 999 | 0.206 |
| 1,000 + | 0.11 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Counter Shift Registers |
| RoHS | Y |
| Counting Sequence | Serial to Parallel |
| Number of Circuits | 8 |
| Number of Bits | 8 bit |
| Package / Case | TVSOP-14 |
| Logic Family | 74LV |
| Logic Type | CMOS |
| Number of Input Lines | 3 / 3 |
| Propagation Delay Time | 21.1 ns, 16.3 ns, 11 ns |
| Supply Voltage - Max | 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Function | Shift Register |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | SN74LV164A |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Number of Output Lines | 3 |
| Operating Supply Voltage | 2 V to 5.5 V |
| Product Type | Counter Shift Registers |
| Factory Pack Quantity | 2000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.001474 oz |
For more information, please refer to datasheet
Documents
| SN74LV164ADGVR Datasheet |
More Information
The SNx4LV164A devices are 8-bit parallel-out serial shift registers designed for 2-V to 5.5-V VCC operation.
