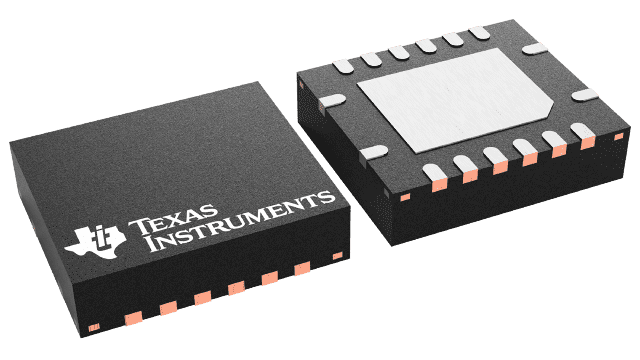

SN74LV595ARGYR Texas Instruments - Yeehing Electronics
Eight-bit shift registers with 3-state output registers
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.593 |
100 — 249 | 0.456 |
250 — 999 | 0.336 |
1,000 + | 0.17 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Counter Shift Registers |
RoHS | Y |
Counting Sequence | Serial to Serial/Parallel |
Number of Circuits | Octal |
Package / Case | VQFN-16 |
Logic Family | LV |
Logic Type | CMOS |
Number of Input Lines | 1 |
Output Type | 3-State |
Propagation Delay Time | 22.5 ns, 16.5 ns, 10.2 ns |
Supply Voltage - Min | 2 V |
Supply Voltage - Max | 5.5 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Packaging | Reel |
Function | The ?LV595A devices are 8-bit shift registers designed for 2-V to 5.5-V VCC operation |
Height | 0.8 mm |
Length | 4 mm |
Operating Temperature Range | - 40 C to + 125 C |
Series | SN74LV595A |
Width | 3.5 mm |
Brand | Texas Instruments |
Mounting Style | SMD/SMT |
Number of Output Lines | 9 |
Moisture Sensitive | Yes |
Operating Supply Voltage | 2 V to 5.5 V |
Product Type | Counter Shift Registers |
Factory Pack Quantity | 3000 |
Subcategory | Logic ICs |
Triggering Type | Positive-Edge |
Unit Weight | 0.001312 oz |
For more information, please refer to datasheet
Documents
SN74LV595ARGYR Datasheet |
More Information
The SN74LV595A device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. Both the shift register clock (SRCLK) and storage register clock (RCLK) are positive-edge triggered.
