Description

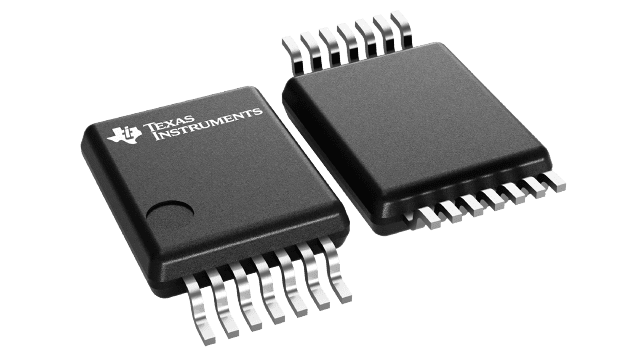

SN74LVC06ADGVR Texas Instruments - Yeehing Electronics
6-ch, 1.65-V to 3.6-V inverters with open-drain outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | None |
| 100 — 249 | None |
| 250 — 999 | None |
| 1,000 + | None |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Buffers & Line Drivers |
| RoHS | Y |
| Number of Input Lines | 6 Input |
| Number of Output Lines | 6 Output |
| Polarity | Inverting |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 1.65 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | TVSOP-14 |
| Packaging | Reel |
| Function | Buffer/Driver |
| Height | 1.05 mm |
| Length | 3.6 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Type | Open Drain |
| Quiescent Current | 1 uA |
| Series | SN74LVC06A |
| Technology | CMOS |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Logic Family | LVC |
| Logic Type | CMOS |
| Number of Channels | 5 |
| Supply Current - Max | 1 uA |
| Input Signal Type | Single-Ended |
| Low Level Output Current | 24 mA |
| Operating Supply Current | 10 uA |
| Operating Supply Voltage | 1.8 V |
| Product Type | Buffers & Line Drivers |
| Propagation Delay Time | 3.7 ns at 2.7 V, 3.5 ns at 3.3 V |
| Factory Pack Quantity | 2000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.001474 oz |
For more information, please refer to datasheet
Documents
| SN74LVC06ADGVR Datasheet |
More Information
These hex inverter buffers/drivers are designed for 1.65-V to 3.6-V VCC operation.
