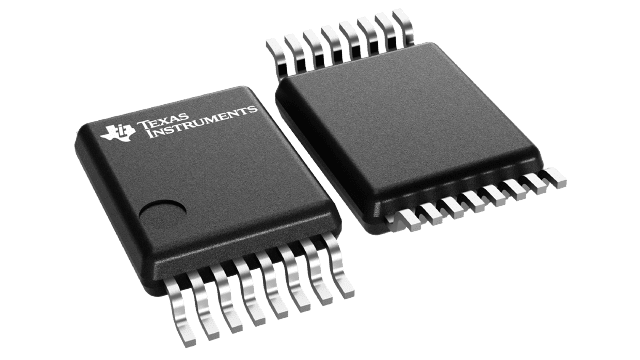

SN74LVC138ADGVR Texas Instruments - Yeehing Electronics

3-Line To 8-Line decoder/Demultiplexer

Pricing (USD)

Quantity	Unit Price
1 — 99	0.499
100 — 249	0.339
250 — 999	0.262
1,000 +	0.12

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Encoders, Decoders, Multiplexers & Demultiplexers
RoHS	Y
Product	Decoders / Demultiplexers
Logic Family	LVC
Number of Input Lines	3 Input
Number of Output Lines	8 Output
Propagation Delay Time	6.7 ns
Supply Voltage - Min	1.65 V
Supply Voltage - Max	3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	TVSOP-16
Packaging	Reel
Function	Decoder/Demultiplexer
Height	1.05 mm
Length	3.6 mm
Number of Circuits	Triple
Operating Temperature Range	- 40 C to + 85 C
Series	SN74LVC138A
Technology	CMOS
Width	4.4 mm
Brand	Texas Instruments
Logic Type	Decoders/Demultiplexers
Supply Current - Max	0.01 mA
High Level Output Current	- 24 mA
Low Level Output Current	24 mA
Maximum Clock Frequency	100 MHz
Operating Supply Voltage	1.65 V to 3.6 V
Pd - Power Dissipation	200 mW
Product Type	Encoders, Decoders, Multiplexers & Demultiplexers
Factory Pack Quantity	2000
Subcategory	Logic ICs
Unit Weight	0.001478 oz

For more information, please refer to datasheet

Documents

SN74LVC138ADGVR Datasheet

More Information

The SN74LVC138A devices are designed for high-performance memory-decoding or data-routing applications requiring very short propagation delay times. In high-performance memory systems, these decoders minimize the effects of system decoding. When employed with high-speed memories using a fast enable circuit, delay times of these decoders and the enable time of the memory usually are less than the typical access time of the memory. This means that the effective system delay introduced by the decoders is negligible.
