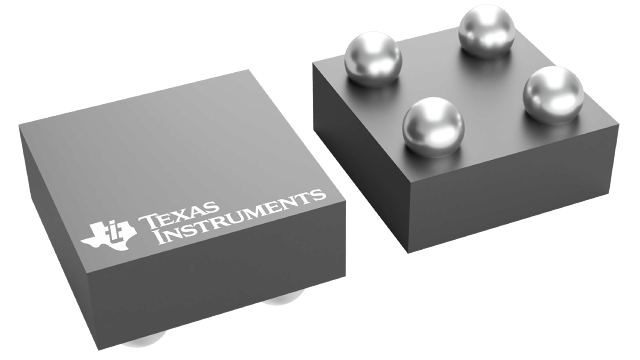

SN74LVC1G07YZVR


YeeHing #: Y009-SN74LVC1G07YZVR
Inventory: 63200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

SN74LVC1G07YZVR Texas Instruments - Yeehing Electronics

Single 1.65-V to 5.5-V buffer with open-drain outputs

Pricing (USD)

Quantity Unit Price
1 — 99 0.253
100 — 249 0.172
250 — 999 0.132
1,000 + 0.05

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Buffers & Line Drivers
RoHS Y
Number of Input Lines 1 Input
Number of Output Lines 1 Output
Polarity Non-Inverting
Supply Voltage - Max 5.5 V
Supply Voltage - Min 1.65 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Mounting Style SMD/SMT
Package / Case DSBGA-4
Packaging Reel
Function Buffer/Driver
Height 0.35 mm
Length 0.9 mm
Operating Temperature Range - 40 C to + 125 C
Output Type Open Drain
Quiescent Current 10 uA
Series SN74LVC1G07
Technology CMOS
Width 0.9 mm
Brand Texas Instruments
Logic Family LVC
Logic Type True
Number of Channels 1 Channel
Supply Current - Max 10 uA
Input Signal Type Single-Ended
Low Level Output Current 32 mA
Operating Supply Voltage 1.8 V, 2.5 V, 3.3 V, 5 V
Product Type Buffers & Line Drivers
Propagation Delay Time 4.2 ns at 3.3 V
Factory Pack Quantity 3000
Subcategory Logic ICs
Unit Weight 0.000028 oz

For more information, please refer to datasheet

Documents

SN74LVC1G07YZVR Datasheet

More Information

This single buffer/driver is designed for 1.65-V to 5.5-V VCC operation.
