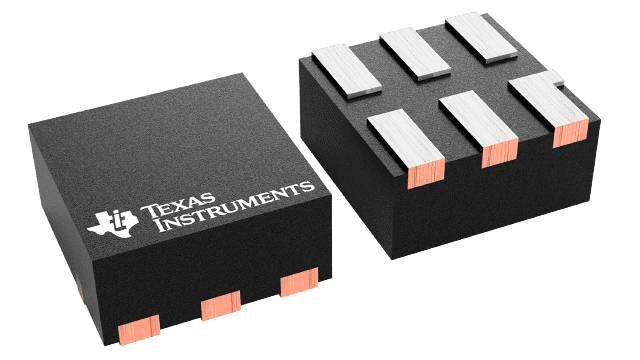

Single 2-input, 1.65-V to 5.5-V AND gate
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.115 |
| 100 — 249 | 0.078 |
| 250 — 999 | 0.06 |
| 1,000 + | 0.06 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Logic Gates |
| RoHS | Y |
| Logic Function | AND |
| Logic Family | LVC |
| Number of Input Lines | 2 Input |
| Number of Output Lines | 1 Output |
| High Level Output Current | - 32 mA |
| Low Level Output Current | 32 mA |
| Propagation Delay Time | 5 ns at 5 V |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.65 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | SON-6 |
| Packaging | Reel |
| Input Type | CMOS, TTL |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Voltage | 5.5 V |
| Series | SN74LVC1G08 |
| Brand | Texas Instruments |
| Logic Type | True |
| Product Type | Logic Gates |
| Factory Pack Quantity | 5000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.000028 oz |
For more information, please refer to datasheet
Documents
| SN74LVC1G08DSF2 Datasheet |
More Information
This single 2-input positive-AND gate is designed for 1.65-V to 5.5-V VCC operation.
