Texas Instruments

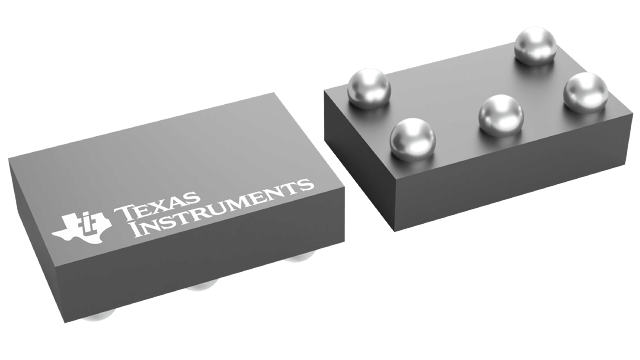

SN74LVC1G125YZPR
SN74LVC1G125YZPR
Regular price
$0.05 USD
Regular price
Sale price
$0.05 USD
Unit price
per
Couldn't load pickup availability
SN74LVC1G125YZPR Texas Instruments - Yeehing Electronics
Single 1.65-V to 5.5-V buffer with 3-state outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.221 |
| 100 — 249 | 0.15 |
| 250 — 999 | 0.116 |
| 1,000 + | 0.05 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Buffers & Line Drivers |
| RoHS | Y |
| Number of Input Lines | 1 Input |
| Number of Output Lines | 1 Output |
| Polarity | Non-Inverting |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.65 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-5 |
| Packaging | Reel |
| Function | Buffer/Line Driver |
| Height | 0.3 mm |
| Length | 1.4 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Type | 3-State |
| Quiescent Current | 10 uA |
| Series | SN74LVC1G125 |
| Technology | CMOS |
| Width | 0.9 mm |
| Brand | Texas Instruments |
| Logic Family | LVC |
| Logic Type | True |
| Number of Channels | 1 Channel |
| Supply Current - Max | 10 uA |
| High Level Output Current | - 32 mA |
| Input Signal Type | Single-Ended |
| Low Level Output Current | 32 mA |
| Operating Supply Voltage | 1.8 V |
| Product Type | Buffers & Line Drivers |
| Propagation Delay Time | 4.5 ns at 3.3 V, 4 ns at 5 V |
| Factory Pack Quantity | 3000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.000056 oz |
For more information, please refer to datasheet
Documents
| SN74LVC1G125YZPR Datasheet |
More Information
This bus buffer gate is designed for 1.65-V to 5.5-V VCC operation.
