Description

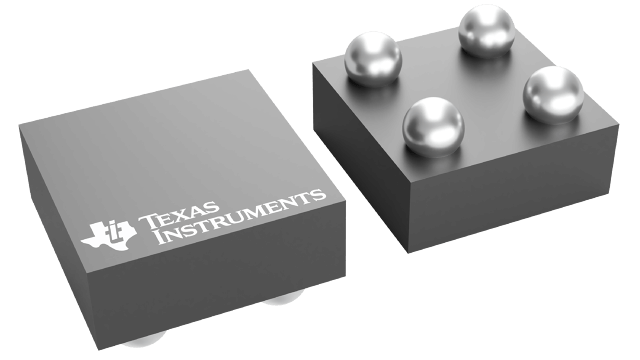

SN74LVC1G14YZVR Texas Instruments - Yeehing Electronics
Single 1.65-V to 5.5-V inverter with Schmitt-Trigger inputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.293 |
| 100 — 249 | 0.199 |
| 250 — 999 | 0.154 |
| 1,000 + | 0.06 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Inverters |
| RoHS | Y |
| Number of Circuits | 1 Circuit |
| Logic Family | LVC |
| Logic Type | Inverting |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.65 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-4 |
| Packaging | Reel |
| Function | Inverter Schmitt Trigger |
| Input Type | Schmitt Trigger |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | SN74LVC1G14 |
| Brand | Texas Instruments |
| High Level Output Current | - 32 mA |
| Low Level Output Current | 32 mA |
| Operating Supply Voltage | 1.8 V, 2.5 V, 3.3 V, 5 V |
| Product Type | Inverters |
| Factory Pack Quantity | 3000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.000028 oz |
For more information, please refer to datasheet
Documents
| SN74LVC1G14YZVR Datasheet |
More Information
This single Schmitt-trigger inverter is designed for 1.65-V to 5.5-V VCC operation.
