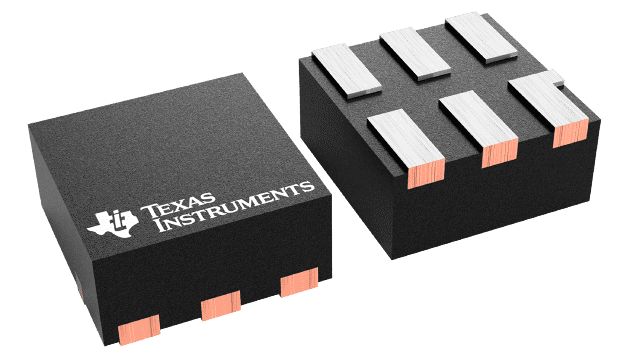

SN74LVC1G57DSFR Texas Instruments - Yeehing Electronics

Configurable Multiple-Function Gate

Pricing (USD)

Quantity	Unit Price
1 — 99	0.095
100 — 249	0.064
250 — 999	0.05
1,000 +	0.02

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Logic Gates
RoHS	Y
Product	Configurable Multiple-Function Gate
Logic Function	Configurable
High Level Output Current	- 32 mA
Low Level Output Current	32 mA
Supply Voltage - Max	5.5 V
Supply Voltage - Min	1.65 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	SON-6
Packaging	Reel
Input Type	Schmitt Trigger
Operating Temperature Range	- 40 C to + 125 C
Series	SN74LVC1G57
Brand	Texas Instruments
Logic Type	True
Product Type	Logic Gates
Factory Pack Quantity	5000
Subcategory	Logic ICs
Unit Weight	0.000035 oz

For more information, please refer to datasheet

Documents

SN74LVC1G57DSFR Datasheet

More Information

The SN74LVC1G57 device features configurable multiple functions. The output state is determined by eight patterns of 3-bit input. The user can choose the logic functions AND, OR, NAND, NOR, XNOR, inverter, and buffer. All inputs can be connected to VCC or GND.
