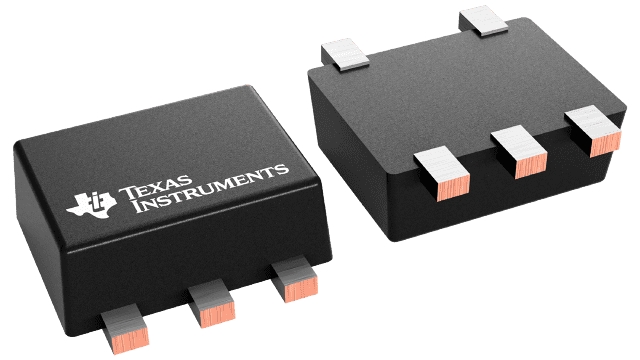

SN74LVC1G86DRLR Texas Instruments - Yeehing Electronics

Single 2-input, 1.65-V to 5.5-V XOR (exclusive OR) gate

Pricing (USD)

Quantity	Unit Price
1 — 99	0.218
100 — 249	0.148
250 — 999	0.114
1,000 +	0.05

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Logic Gates
RoHS	Y
Product	Single-Function Gate
Logic Function	XOR
Logic Family	74LVC
Number of Gates	1 Gate
Number of Input Lines	2 Input
Number of Output Lines	1 Output
High Level Output Current	- 32 mA
Low Level Output Current	32 mA
Propagation Delay Time	5 ns
Supply Voltage - Max	5.5 V
Supply Voltage - Min	1.65 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	SOT-5X3-5
Packaging	Reel
Function	XOR
Height	0.55 mm
Input Type	CMOS, TTL
Length	1.6 mm
Operating Temperature Range	- 40 C to + 125 C
Series	SN74LVC1G86
Width	1.2 mm
Brand	Texas Instruments
Logic Type	True
Operating Supply Voltage	1.8 V, 2.5 V, 3.3 V, 5 V
Product Type	Logic Gates
Factory Pack Quantity	4000
Subcategory	Logic ICs
Unit Weight	0.000099 oz

For more information, please refer to datasheet

Documents

SN74LVC1G86DRLR Datasheet

More Information

The SN74LVC1G86 device performs the Boolean function Y = AB + AB in positive logic. This single 2-input exclusive-OR gate is designed for 1.65-V to 5.5-V VCC operation.
