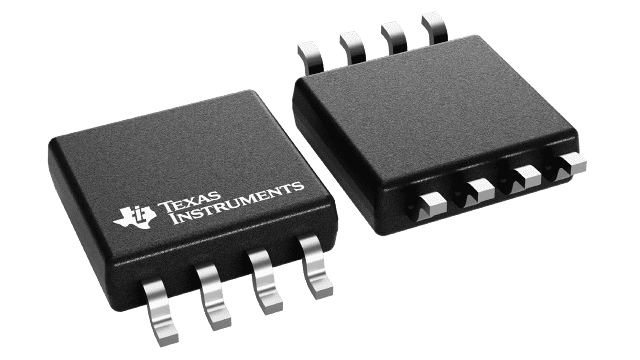

SN74LVC1G99DCTT Texas Instruments - Yeehing Electronics
Ultra-Configurable Multi-Function Gate With 3-State Outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.971 |
| 100 — 249 | 0.747 |
| 250 — 999 | 0.55 |
| 1,000 + | 0.28 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Logic Gates |
| RoHS | Y |
| Product | Configurable Multiple-Function Gate |
| Logic Function | Configurable |
| Logic Family | LVC |
| Number of Gates | 1 Gate |
| Number of Input Lines | 5 Input |
| Number of Output Lines | 1 Output |
| High Level Output Current | - 32 mA |
| Low Level Output Current | 32 mA |
| Propagation Delay Time | 6.5 ns at 5 V |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.65 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | SM-8 |
| Packaging | Reel |
| Function | Multi Function |
| Height | 1.29 mm |
| Input Type | Schmitt Trigger |
| Length | 2.95 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Type | 3-State |
| Output Voltage | 5.5 V |
| Series | SN74LVC1G99 |
| Width | 2.8 mm |
| Brand | Texas Instruments |
| Logic Type | True |
| Operating Supply Voltage | 1.8 V, 2.5 V, 3.3 V, 5 V |
| Product Type | Logic Gates |
| Factory Pack Quantity | 250 |
| Subcategory | Logic ICs |
| Unit Weight | 0.000825 oz |
For more information, please refer to datasheet
Documents
| SN74LVC1G99DCTT Datasheet |
More Information
The SN74LVC1G99 device is operational from 1.65 V to 5.5 V.
